Advanced asbestos identification

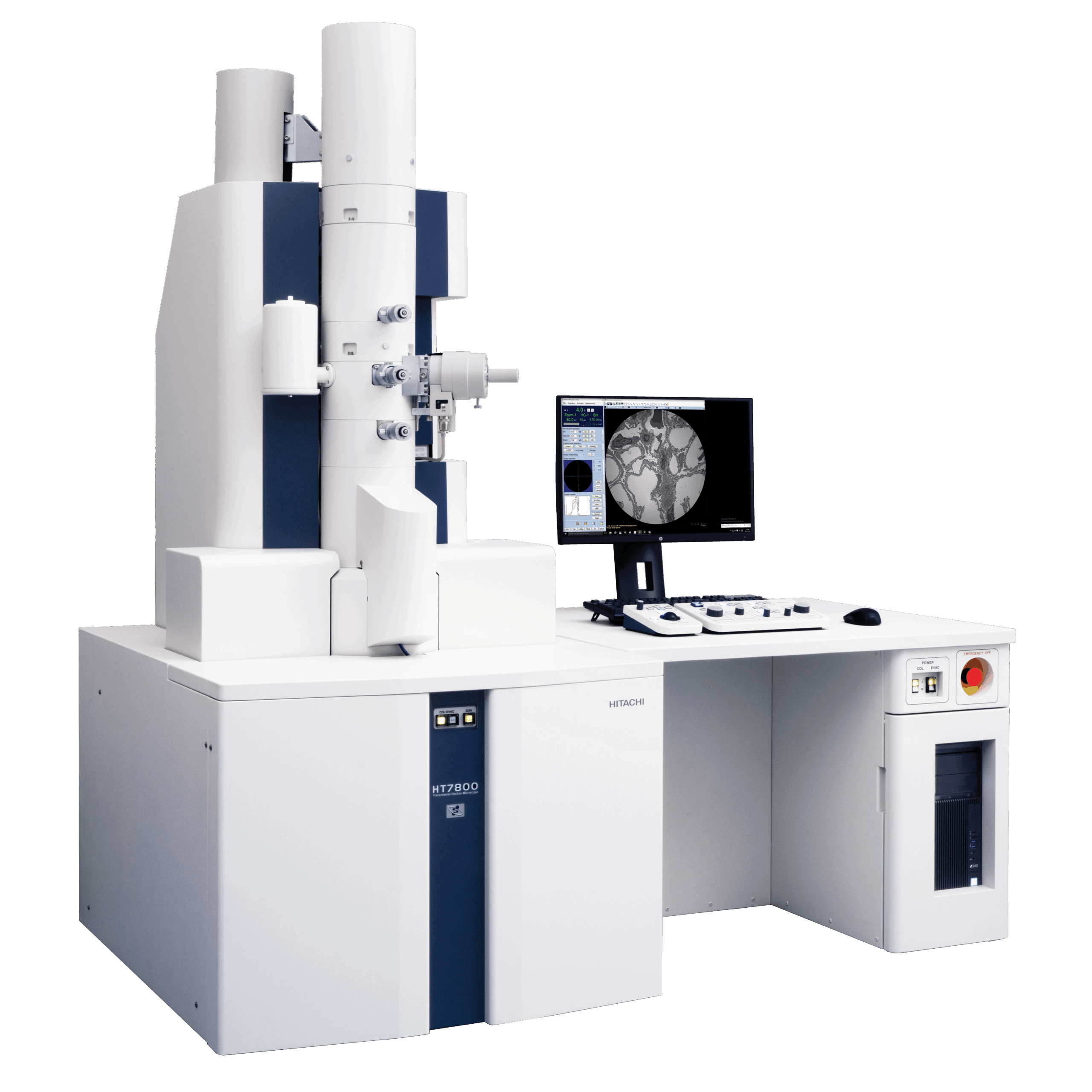

Transmission Electron Microscopy (TEM)

High-resolution asbestos fibre identification for samples requiring greater analytical certainty.

WHY TEM?

See and identify fibres at a much smaller scale

TEM uses a high-energy electron beam to produce highly magnified images of individual fibres. It is particularly useful where conventional microscopy is inconclusive or fibres are extremely fine.

Investigate very fine suspected asbestos fibres

Confirm uncertain or inconclusive conventional results

Identify fibres collected during air monitoring

Distinguish asbestos from other mineral or non-asbestos fibres

How asbestos is identified

Three lines of evidence

TEM can combine fibre appearance, elemental composition and crystal structure to provide a highly specific identification.

1

Morphology

Shape, size, fibrillation and other structural characteristics are examined at very high magnification.

2

Chemical composition

Energy Dispersive X-ray Spectroscopy (EDS) determines the elemental composition of an individual fibre.

3

Crystal structure

Electron diffraction provides crystallographic information that can help distinguish asbestos minerals from similar materials.

Applications

When TEM analysis may be appropriate

Air monitoring & clearance

Identify whether fibres collected on an air filter are asbestos where fibre identity is uncertain.

Bulk materials

Further investigate difficult matrices such as vinyl, mastics, coatings, bituminous materials, gaskets and composites.

Naturally occurring asbestos

Characterise fibrous minerals in soil, rock, aggregate and geological materials.

High-consequence decisions

Provide additional analytical certainty where results may affect removal, remediation or exposure-control decisions.

Method comparison

TEM compared with conventional microscopy

PLM
PCM
SEM
TEM
Typical role
Bulk asbestos identification
Airborne fibre counting
High-resolution surface imaging
Advanced fibre identification
Key limitation / advantage
Well suited to many bulk materials, but limited for extremely fine fibres.
Counts fibres but does not reliably identify every fibre as asbestos.
Provides strong imaging capability, but TEM offers additional crystallographic identification.
Combines high-resolution imaging, EDS and electron diffraction for very fine fibres.

Identifibre expertise

Integrated asbestos testing and occupational hygiene support

Identifibre provides asbestos testing, air monitoring, clearance inspections and hazardous-materials assessments. Our team can help determine whether TEM or another analytical method is most appropriate for your sample and project.

Need advanced asbestos fibre identification?



Contact Identifibre to discuss your sample, analytical requirements and the most appropriate testing approach.
